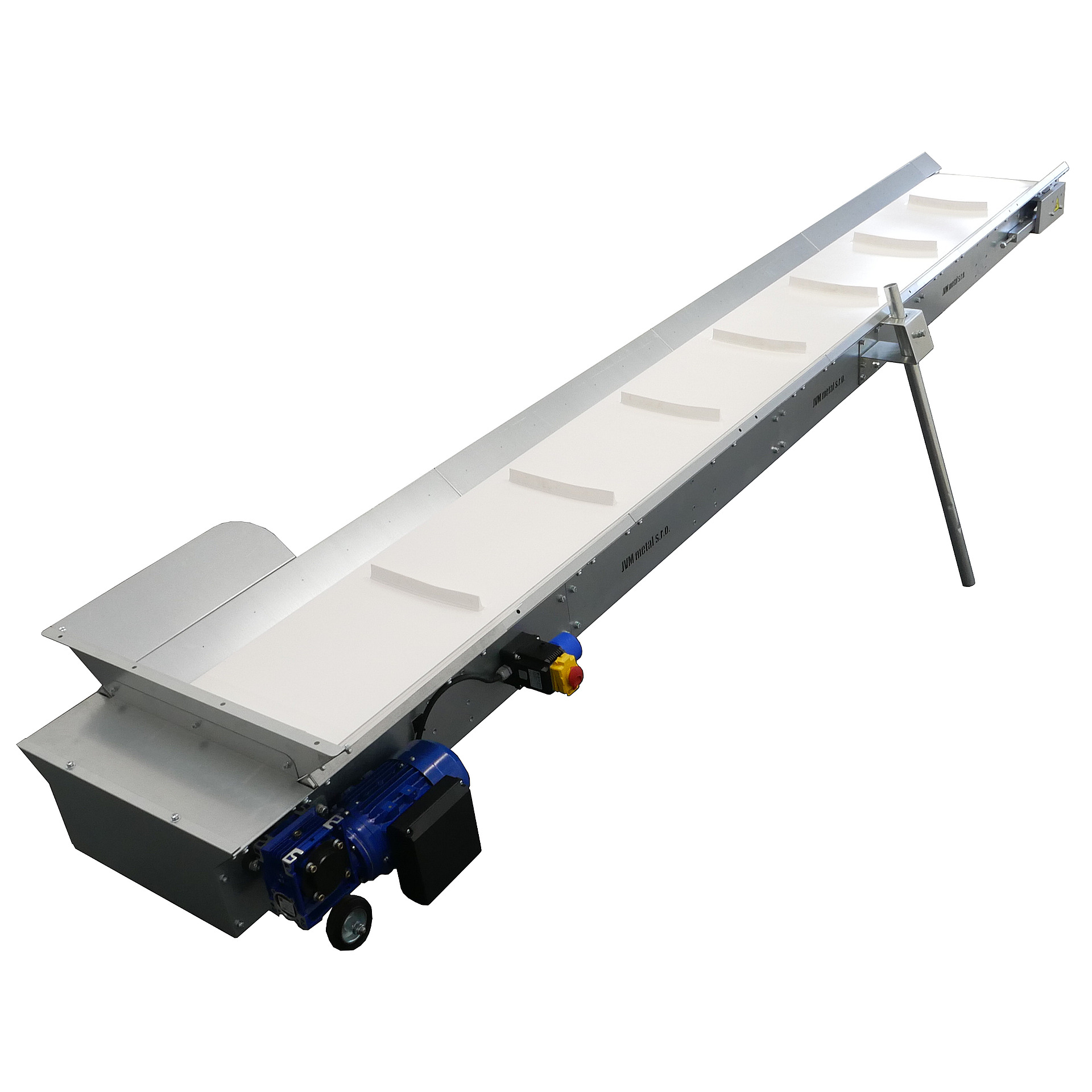

STANDARD STAINLESS
Conveyor Belt
The conveyor belt is available in various lengths and widths. A core advantage of our conveyors is their PATENTED modular design, which allows them to be easily extended or shortened in a few minutes. You can use our configurator to select the specific dimensions of your conveyor as you require.
If you’re unsure which variant is best for you,
contact our specialist by calling: +420 731 829 144

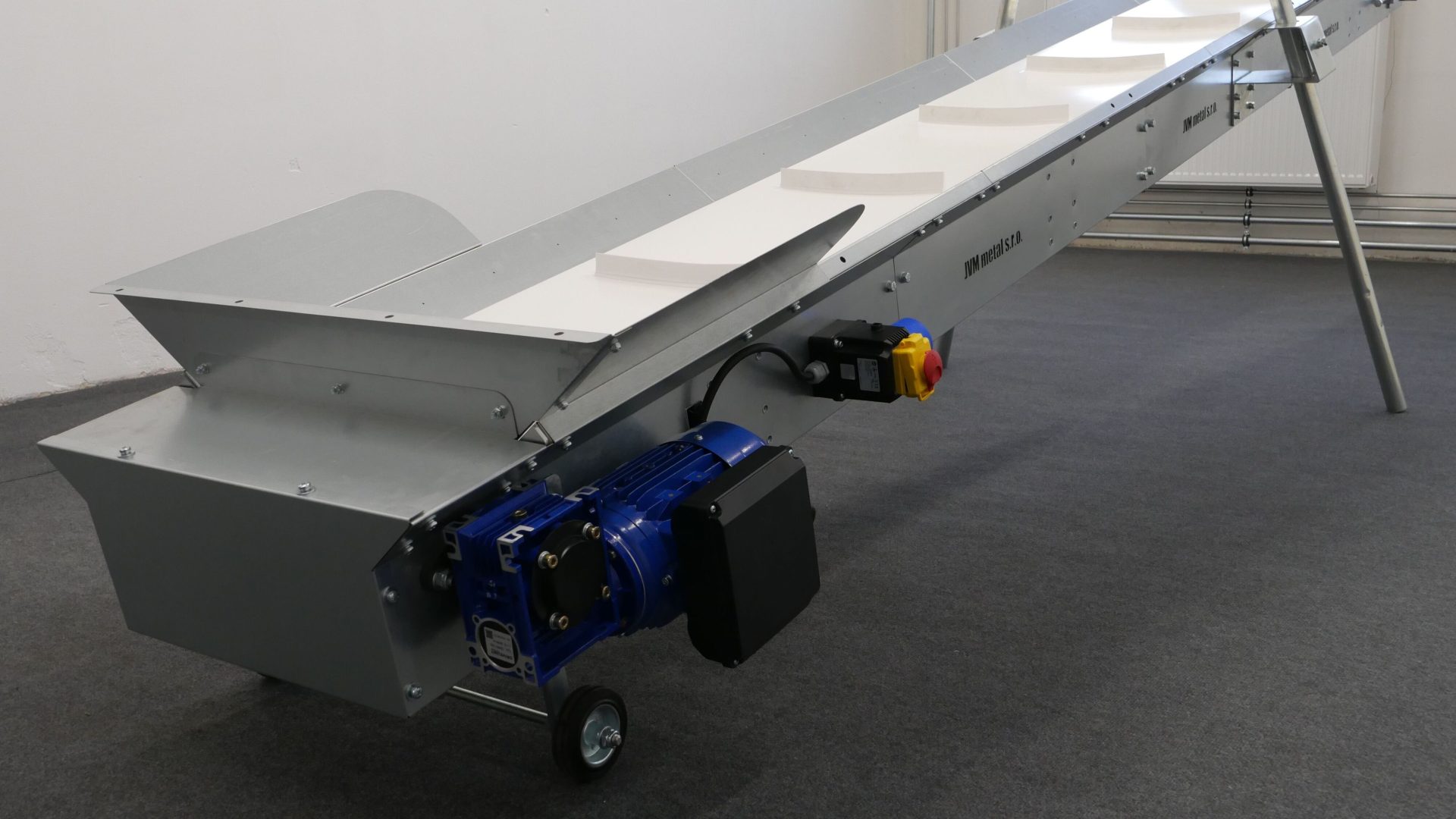

Drive Unit of the Conveyor
The conveyor is fitted with a 0.75 kW electric motor with a worm gear. The voltage of the motor is 230 or 400 V.
The drive unit can safely handle even high loads.
You have a choice of several belt speeds:
220 mm/s 450 mm/s 850 mm/s 1750 mm/s
You can also define your own speed if needed.
Electrical Wiring of the Conveyor
You can choose from four electrical wiring options:
1. Conveyor Belt with 230 V Electrical Wiring
Electrical switch with functions: START, STOP, CENTRAL STOP
Lead to a 230 V socket
2. Conveyor Belt with 400 V Electrical Wiring
Electrical switch with functions: START, STOP, CENTRAL STOP
Lead to a 400 V 16 A socket
3. Conveyor Belt with Speed Regulation – Frequency Converter 400 V
Electrical panel located on a free-standing stand, with smooth speed regulation function.
Functions: START, STOP, CENTRAL STOP, SPEED REGULATION
Lead to a 400 V 16 A socket
4. Conveyor Belt without External Electrical Wiring
This version is used if you want to integrate the conveyor in an existing line which has its own central electrical panel. In that case, the conveyor is only fitted with a 230 V or 400 V electric motor, and the arrangement of the remaining external electrical wiring is left to you.
Protective Side Strips
The conveyor can be fitted with protective side strips. These strips are mounted on the side panels along the full length of the conveyor. They prevent loose material from sliding under the belt. We recommend using these strips with smooth PVC belts or PVC belts with cleats. The strips are not used with a conveyor belt with corrugated sidewalls.
Cover over the Drive Unit of the Conveyor
If the conveyor is used outdoors, it is recommended to fit it with a cover over the drive unit. The cover protects the electric drive, transmission and electrical wiring of the conveyor against weather.
Documentation
The conveyor belt is supplied with documentation in printed and electronic form.
- Pictorial manual for assembly
- Operating manual
- CE Declaration of Conformity*
- Electrical inspection report **
*If the conveyor is supplied without external electrical wiring, the conveyor is supplied with a Declaration of Incorporation of Partly Completed Machinery
**If the conveyor is supplied without external electrical wiring, the electrical inspection report is not included

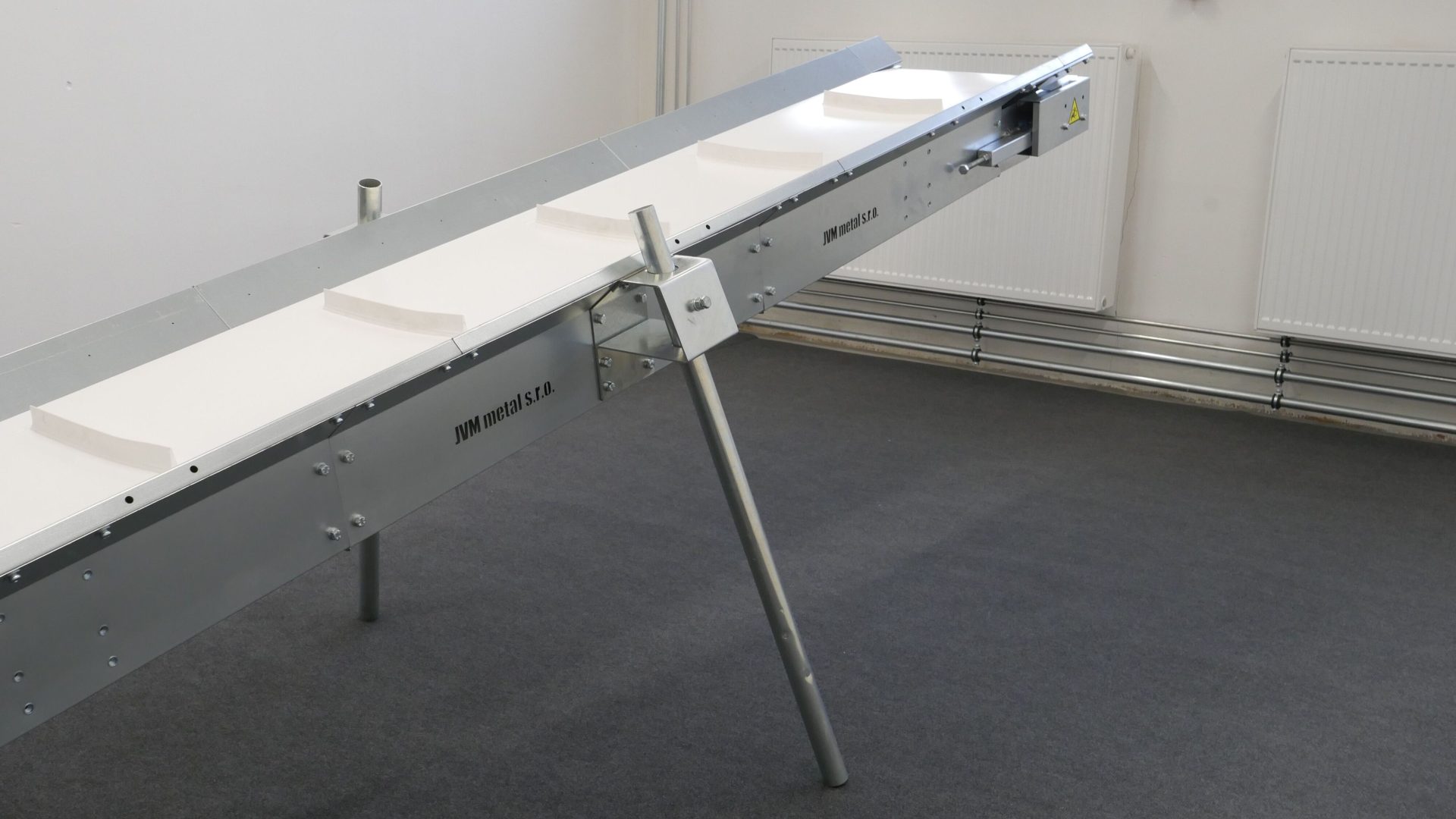

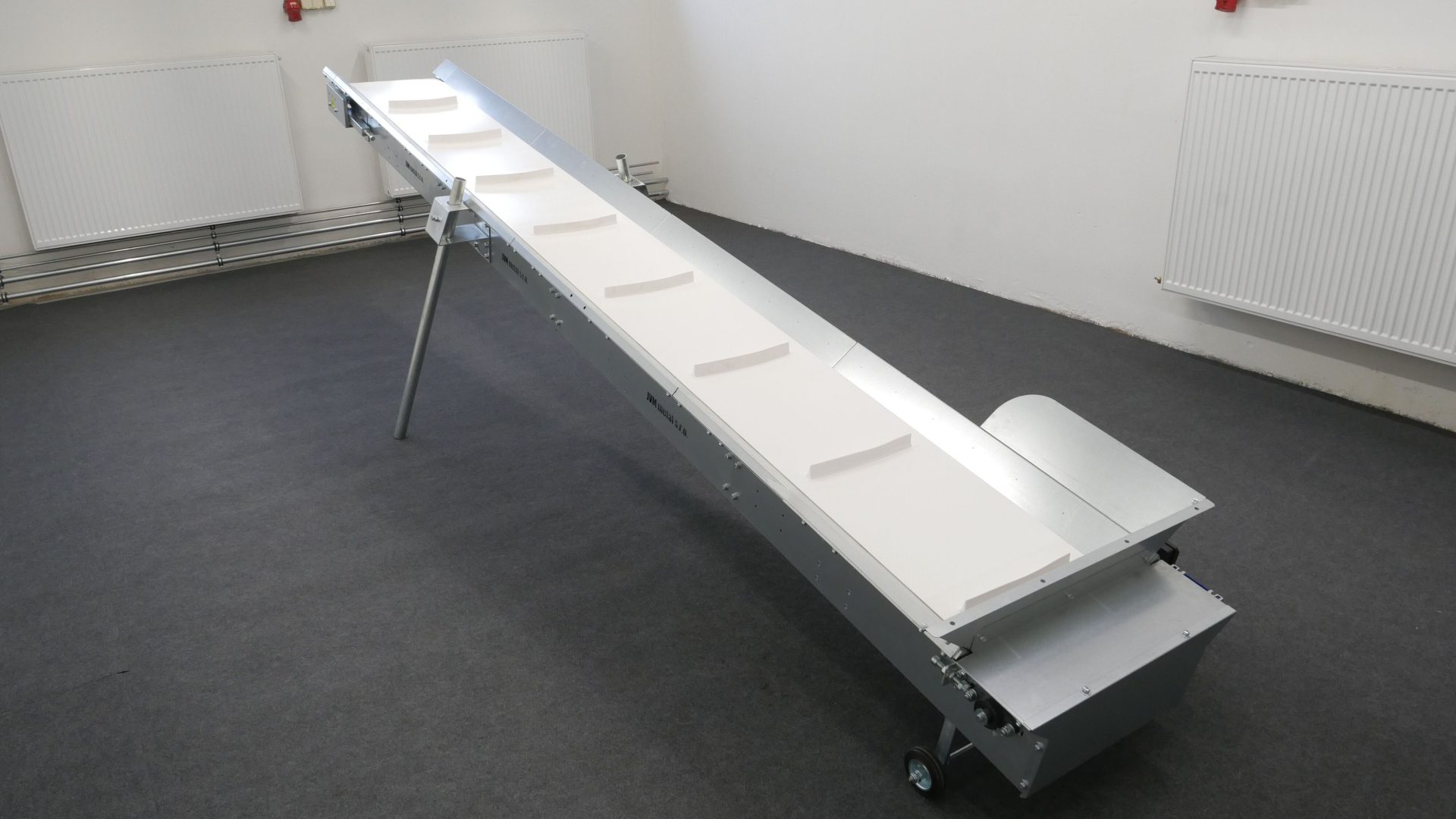

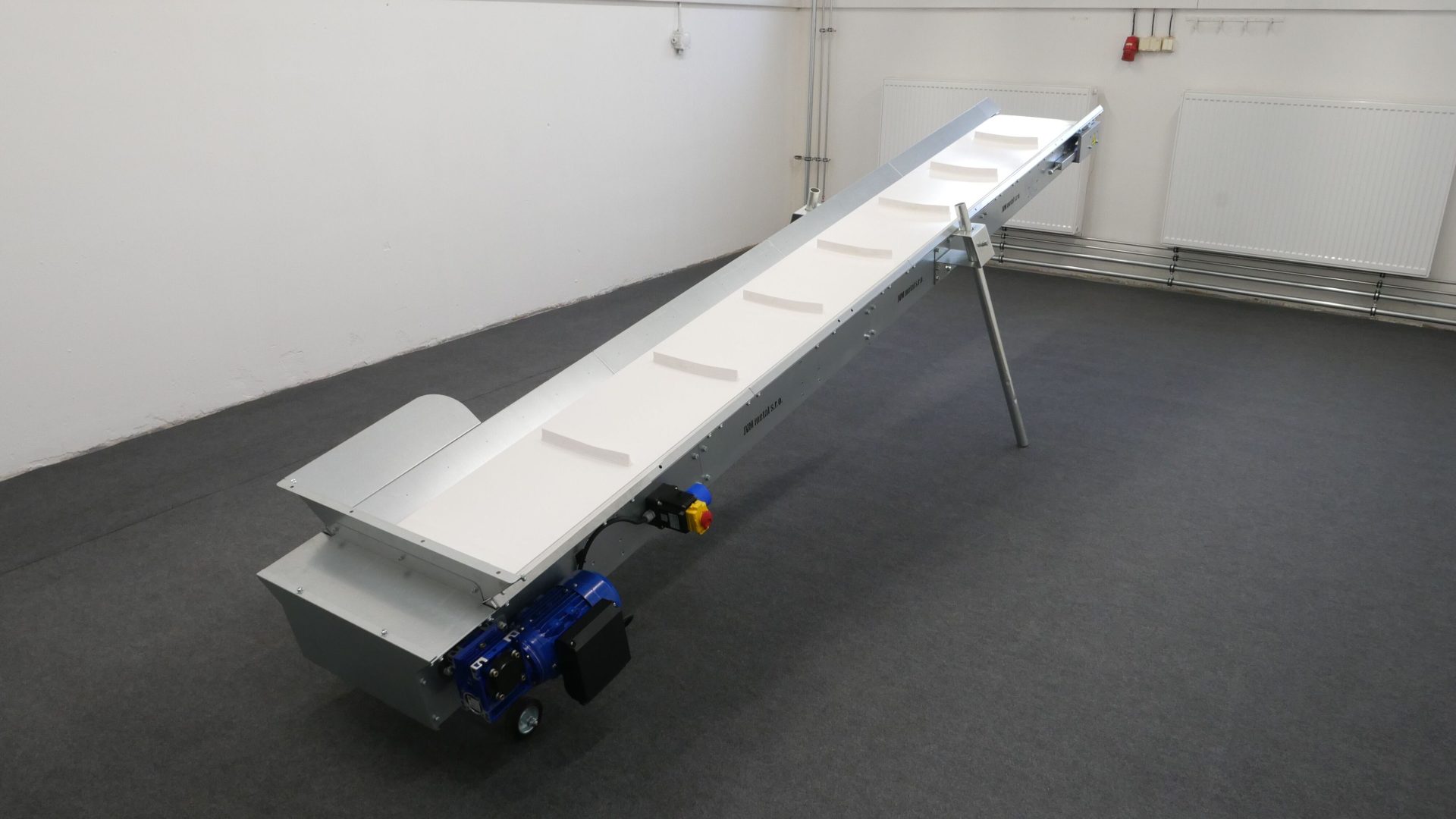

This universal conveyor belt builds on the design of the STANDARD conveyor belt.
The advantage of the STANDARD STAINLESS conveyor is its all-stainless construction, which allows it to be used in the food industry. Thanks to its high resistance, the stainless conveyor belt is also suitable for environments with the presence of aggressive materials. The unique patented technology and modular design of the conveyor open up a wide range of uses in transporting medium heavy materials. The conveyor is fitted with covers at the bottom of the belt, which ensure high occupational safety while also improving the rigidity of the frame. The conveyor offers high variability in terms of dimensions, with lengths ranging from two to eight metres and a width of two hundred or four hundred millimetres. We offer several types of belts certified for the food industry.
If you don’t require an all-stainless conveyor, take a look at the universal STANDARD conveyor belt HERE
STANDARD STAINLESS conveyor belt and its uses:
* for fruit and vegetables
* for food products
* for loose materials
* for piece goods
* for aggressive products
… and many other materials
We’d be more than happy to help you with picking out a suitable conveyor and its accessories.
Call us at:: +420 731 829 144
The STANDARD STAINLESS conveyor can be fitted with these belts:
White, Smooth, Food-Grade PVC Belt
The white food-grade belt, without cleats is suitable primarily for horizontal transport of piece goods. The belt is coupled together by a mechanical clip.
| Material | PVC |
| Structure | smooth |
| Cleats | NO |
| Cleat height | – |
| Cleat pitch | – |
| Corrugated sidewall | NO |
| Sidewall height | – |
| Colour | White |
| Use | Food industry |
| Recommended belt inclination | Horizontal (max. 5 degrees) |
| Coupling | STAINLESS mechanical clip |
White, Food-Grade PVC Belt with 30 mm Cleats
The cleated belt is suitable for transporting piece goods at an incline of up to 35 degrees
The belt is coupled together by a mechanical clip.
| Material | PVC |
| Structure | smooth |
| Cleats | YES |
| Cleat height | 30 mm |
| Cleat pitch | ca. 500 mm |
| Corrugated sidewall | NO |
| Sidewall height | – |
| Colour | White |
| Use | Food industry |
| Recommended belt inclination | Inclined (max. 35 degrees) |
| Coupling | STAINLESS mechanical clip |
White, Smooth, Food-Grade PVC Belt with a Corrugated Sidewall
The sidewalls allow this type of belt to be used with loose materials.
The sidewalls prevent the material from spilling outside the belt.
This type of belt is not fitted with cleats and is therefore suitable for horizontal transport only.
The belt is coupled together by a mechanical clip.
| Material | PVC |
| Structure | smooth |
| Cleats | NO |
| Cleat height | – |
| Cleat pitch | – |
| Corrugated sidewall | Yes |
| Sidewall height | 30 mm |
| Colour | White |
| Use | Food industry |
| Recommended belt inclination | Horizontal (max. 5 degrees) |
| Coupling | STAINLESS mechanical clip |
White, Food-Grade PVC Belt with Cleats and a Corrugated Sidewall
This type of belt can be used to transport any loose material or piece goods at an inclination of up to 35 degrees. The sidewalls prevent the material from spilling outside the belt.
The cleats are 30 mm tall at a pitch of ca. 500 mm. They reliably hold material even at maximum incline.
The belt is coupled together by a mechanical clip.
| Material | PVC |
| Structure | smooth |
| Cleats | YES |
| Cleat height | 30 mm |
| Cleat pitch | ca. 500 mm |
| Corrugated sidewall | YES |
| Sidewall height | 30 mm |
| Colour | White |
| Use | Food industry |
| Recommended belt inclination | Inclined (max. 35 degrees) |
| Coupling | STAINLESS mechanical clip |
Conveyors can be fitted with three types of stands.
The stands are height-adjustable and can therefore be adapted to fit various needs.
Each conveyor module includes anchor points for mounting the stands.
Stand Version A
These stands are the standard option for all conveyors. They are mounted at the front. (Front stands up to 1000 mm tall)
Stand Version B
These stands are taller at the front of the conveyor. This allows the user to increase the incline of the conveyor (Front stands up to 2000 mm tall)
Stand Version C
This version is mounted in both the front and back of the conveyor.( Rear stands up to 1000 mm tall
Front stands up to 2000 mm tall)
It is recommended to always use these stands for conveyors longer than 6 m
STANDARD STAINLESS Conveyor 400 mm Wide
| Conveyor length | from 2 to 8 metres |
| Conveyor width | Belt width 400 mm Total conveyor width 550 mm |
| Load-bearing capacity: | 30 kg / m |
| Power: | 0,75 kW |
| Voltage: | 230V or 400V |
| Conveyor weight: | 80 – 170 kg the weight of your specific conveyor assembly is based on the table found here |
| Height with default stands | 800 -1000 mm |
| Belt speed: | 220 mm/s 450 mm/s 850 mm/s 1750 mm/s |
| Surface finish: | Food-grade stainless steel |
STANDARD STAINLESS Conveyor 200 mm Wide
| Conveyor length | from 2 to 8 metres |
| Conveyor width | Belt width 200 mm Total conveyor width 350 mm |
| Load-bearing capacity: | 15 kg / m |
| Power: | 0,75 kW |
| Voltage: | 230V or 400V |
| Conveyor weight: | 72 – 138 kg the weight of your specific conveyor assembly is based on the table found here |
| Height with default stands | 800 -1000 mm |
| Belt speed: | 220 mm/s 450 mm/s 850 mm/s 1750 mm/s |
| Surface finish: | Food-grade stainless steel |
Basic Delivery
* The conveyor belt is delivered partially assembled.
* The conveyor is carefully packaged to prevent damage during transport.
* The packaging includes a pictorial manual for assembly.
* Assembling the conveyor takes approximately 2-4 hours (depending on the chosen design)
Package dimensions 1200x 800 x1500 mm
Carrier: DHL
Delivery time: 14 days
Advantages:
* Cheaper
Disadvantages:
* the customer must assemble the machine on their own: 2-4 hours (depending on the chosen design)
Assembled Delivery
If you don’t want to spend time assembling the conveyor belt yourself, we can assemble it for you in our facility before shipping. You can then just plug it into a socket and start working.
Package dimensions (dependent on conveyor dimensions)
Carrier: Solo carrier
Delivery time: 14 to 16 days
Advantages:
* Assembled conveyor
* Properly set and adjusted
* Delivery by solo carrier
* Immediately ready for use after delivery
* Option to pay on delivery
Disadvantages:
* More expensive
